Primary StripPR PVR Strip+Primary BlisterPR PVR Blister+Secondary PVRIPVRS SMART+Vision InspectionVISION-360°Primary TubePR PVR Tube+Bundler MachineBundle Aggregation+Tamper-EvidentTEPVRS SMART+Bulk 2D AggregationPCR ASMART+

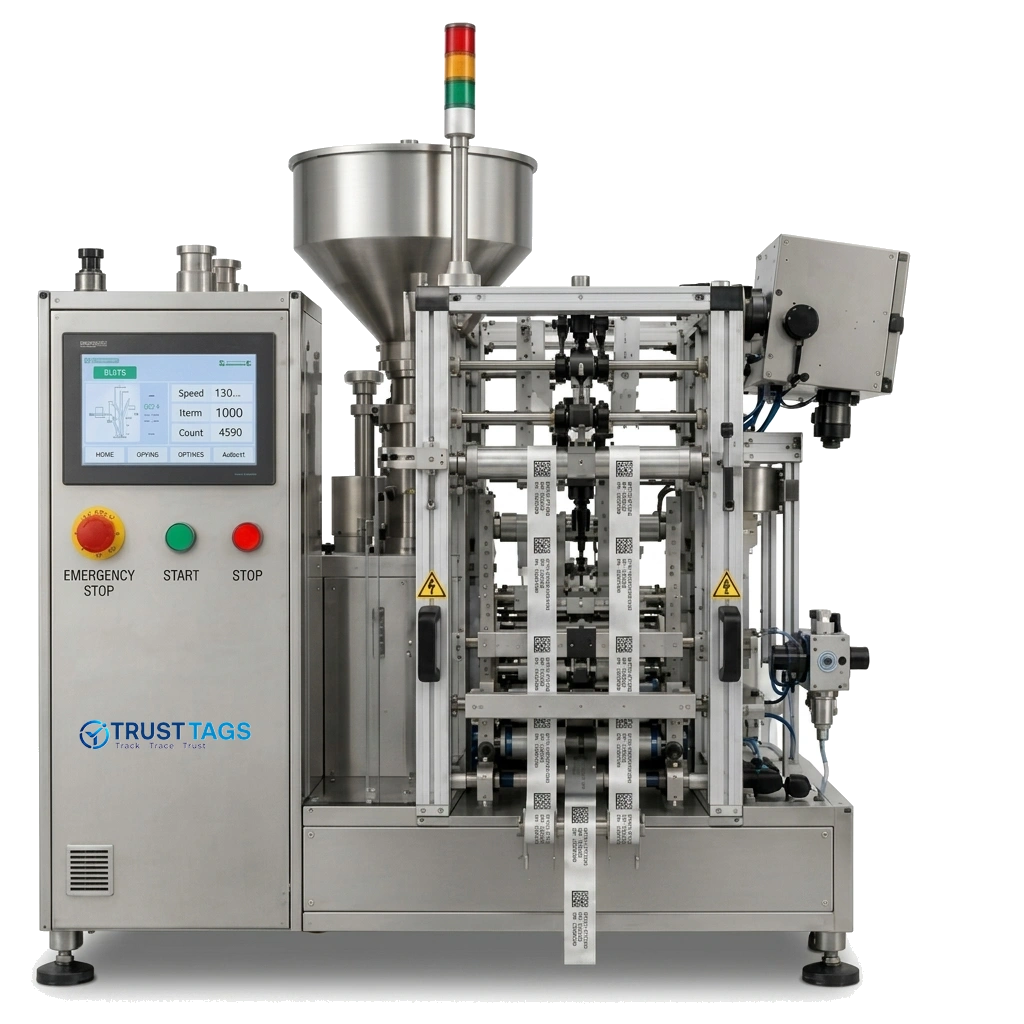

Primary Packaging Serialization Station

PR PVR Strip+

01Optical AI

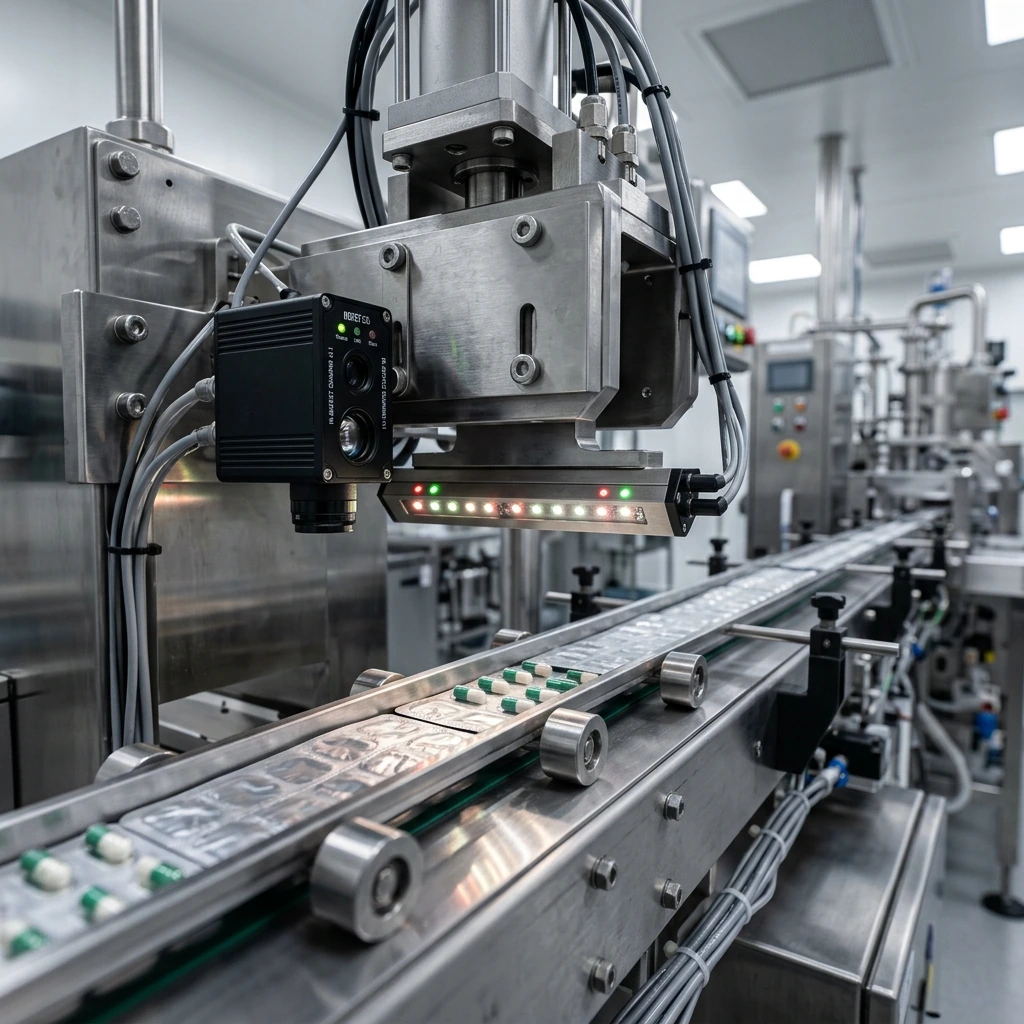

High Sensitivity Pin-Hole Vision

Laser Puncture Detection

High-speed laser vision inspection across foil strip webs capturing micro-defects and porosity at full line speed.

Zero-Defect Line Execution & Rejection

Every critical process is sensor-verified to prevent defect escapes and maintain rigorous GMP compliance.

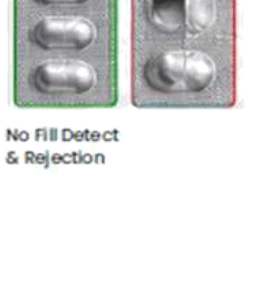

Cavity-Verified

No Fill Detect & Rejection

Optical transmission sensor verifies tablet presence inside foil pockets before sealing and triggers positive rejection of empty strips.

✓ Optical Pouch Sensor✓ Empty Pocket Rejection✓ Festo High-Speed Valves

Micro-Leak Protection

Pin Hole Inspection & Rejection

High-sensitivity optical detector spots micro-punctures and foil porosity in continuous strip webs to guarantee hermetic integrity.

✓ Micro-Pinhole Optical Sensor✓ Zero Compromise Sealing✓ Immediate Alarm & Reject

Instant Line Protection

Intelligent Alarms & Real-Time Notifications

Three-color stack light tower, acoustic sounder, and live HMI popups for consecutive reject thresholds and low ink warnings.

✓ 3-Color Light Tower✓ Audible Line Alarm✓ Live HMI Error Logs

1-Minute Setup

Recipe-Based Rapid Changeovers

Pre-programmed digital recipes for various strip pocket layouts and foil dimensions. Recalls print layouts and strobe in 1 click.

✓ Single-Touch Recall✓ < 60s Batch Setup✓ Unlimited Recipe Storage

Universal Interlock

Seamlessly Integrates with Your Packaging Line

Custom-engineered brackets and standardized PLC signals allow drop-in installation on all major Indian and international blister packers.

StripPack 300High-Speed Strip Packer✓ Synchronized

AluStrip 600Continuous Motion Strip✓ Synchronized

FormStrip 250Rotary Strip Sealer✓ Synchronized

Pampac StripMasterPharma Packaging✓ Synchronized

Elmach PolyStripCarton & Strip Unit✓ Synchronized

Modular IPC Mounting Configurations

Select from 3 standard factory mounting formats designed for seamless cleanroom integration and operator ergonomics.

Image 001 • In-Line Format

📐 Cleanroom CAD1:1 Spec

MOUNTING & INTEGRATION FORMAT

Overhead Strip Packer Mount

Mounted directly on existing strip packaging frame with heavy-duty vibration-isolation dampers. Provides optimal overhead positioning.

✓Direct Strip Machine Interlock

✓Tool-Free Multi-Axis Adjustment

✓Vibration-Damped Mount

✓Zero Floor Obstruction

Engineering Specifications

Technical Specifications & Performance Data

Comprehensive electrical, mechanical, camera optics, printing, and industrial computing parameters.

Distinct Specifications

	Inline Strip Web Inspection
Parameter	PR PVR Strip+ (Standard)	Multi-Lane Foil Sync
Camera Type	Cognex ID+OCR Max	Multi-Zone 20MP Sensor
Lens	Liquid Lens Auto Focus	Wide-Angle Liquid Lens
Inspection Systems	No Fill Detect & Rejection	Pin-Hole Inspection & Foil Porosity
Foil Web Width Range	Min 70 mm — Max 400 mm	Up to 600 mm Extended Web
Machine Weight / Bracket	Approx. 25 kg (SS304 Assembly)	Approx. 35 kg (Heavy Duty Frame)

General Specifications

Printer

Print Resolution	Up to 600 DPI
Print Height	12.5 mm per head
Power Supply	100–240 VAC, 50/60 Hz, 2A
Connectivity	Gigabit Ethernet
Printer Type	TIJ & Laser
Max No. of Heads	Up to 8 Heads

PLC

Power Supply	24 VDC (DC/DC/DC versions)
Connectivity	Gigabit Ethernet
Memory	Up to 24 KB
Protection	Industrial-grade
Digital Inputs	14 DI CPU-Integrated
Digital Outputs	10 DO CPU-Integrated

Inspection

Algorithms	OCR Max, IDMax, 2DMax, Pinhole & Cavity
Connectivity	Gigabit Ethernet
Power Supply	24 VDC ±10%, approx 3–5 W
Touchscreen	Yes

System

Processor	Intel i5
OS	Windows IoT
SSD / RAM	500 / 16 GB
