Secondary Packaging Serialization Station

IPVRS SMART+

01Data Integrity

Smart ID, OCR & 2D DataMatrix

99.98% Grading Accuracy

Simultaneous in-line decoding and ISO grade verification of 2D DataMatrix codes, batch text, and pharmacode on cartons.

Zero-Defect Line Execution & Rejection

Every critical process is sensor-verified to prevent defect escapes and maintain rigorous GMP compliance.

Vibration-Free Handling

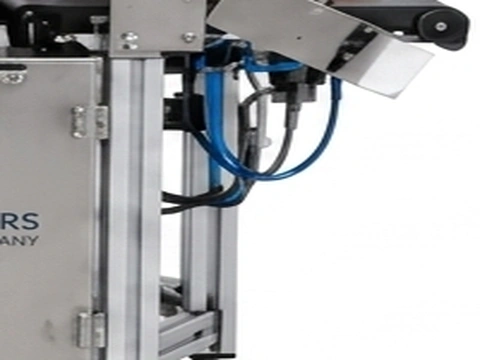

Precision Product Handling (4-Side Gripping Conveyor)

Synchronized top and side belts hold cartons rigidly during high-speed printing and camera verification to eliminate vibration jitter.

✓ 4-Side Belt Synchronization✓ Zero Vibration Jitter✓ Adjustable Carton Width Guide

Dynamic Weighing & Segregation

First-in-the-Industry In-Built Checkweigher

Integrated dynamic weighing station with ±0.1g accuracy identifying missing leaflets or empty cartons with immediate pneumatic rejection.

✓ Dynamic Weigh Cell Integration✓ ±0.1g Precision Verification✓ Missing Leaflet Protection

Motorized Fast Setup

One-Click Auto Adjustment (Print head, camera & conveyor)

Automated motorized guides adjust printhead height, vision strobe angle, and conveyor width automatically based on the selected recipe.

✓ Motorized Format Changeover✓ < 60s Recipe Recall✓ Tool-Free Line Setup

Cleanroom Enclosure

21 CFR & GAMP 5 Enclosed Safety Guards

Interlocked acrylic/polycarbonate protective hoods ensuring operator safety and cleanroom dust isolation with full audit-ready logging.

✓ Interlocked Safety Hoods✓ Full Cleanroom Segregation✓ Audit-Ready Digital Trail

Universal Interlock

Seamlessly Integrates with Your Packaging Line

Custom-engineered brackets and standardized PLC signals allow drop-in installation on all major Indian and international blister packers.

Romaco PromaticContinuous Cartoner✓ Synchronized

Bosch / Syntegon CUTIntermittent Cartoner✓ Synchronized

Marchesini BA / MAHigh-Speed Cartoner✓ Synchronized

IMA Dynamica / FlexaPackaging Cartoner✓ Synchronized

Pampac CartonPackPharma Cartoner✓ Synchronized

Modular IPC Mounting Configurations

Select from 3 standard factory mounting formats designed for seamless cleanroom integration and operator ergonomics.

Standard Inline • 1500mm

📐 Cleanroom CAD1:1 Spec

MOUNTING & INTEGRATION FORMAT

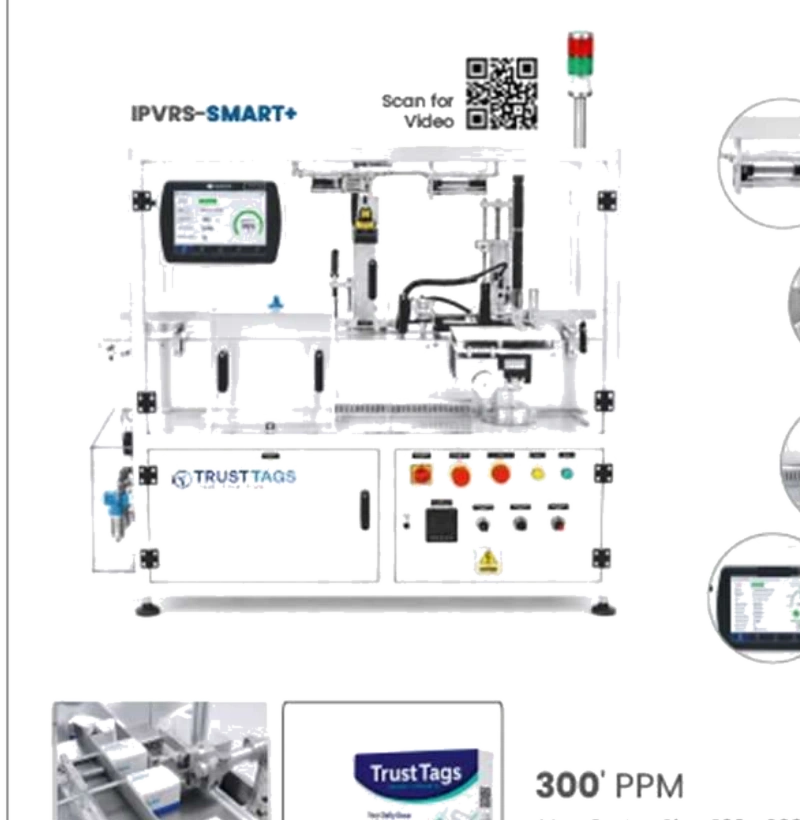

IPVRS-SMART+ Inline System

Full-featured 1500 mm carton serialization conveyor with integrated checkweigher, dual-head printing, 20MP vision inspection, and locked reject bin.

✓1500 mm Heavy Duty Conveyor

✓Cognex / GigE Camera Interlock

✓In-Built Dynamic Checkweigher

✓Full 21 CFR Part 11 Enclosure

Engineering Specifications

Technical Specifications & Performance Data

Comprehensive electrical, mechanical, camera optics, printing, and industrial computing parameters.

Distinct Specifications

	Inline Conveyor
Parameter	IPVRS-SMART+	IPVRS-COMPACT+
Camera Type	Cognex ID+OCR	GigE
Lens	Liquid Lens Auto Focus (Wide -6.2, Medium -7.7, Narrow -16, L-16 (mm))	Fixed Focus
Lighting	In Built Multi-Zone Strobe	External Strobe
Conveyor Length	1500mm	1000mm
Machine Weight	120 kg	80 kg

General Specifications

Printer

Print Resolution	up to 600 DPI
Print Height	12.5 mm per head
Power Supply	100–240 VAC, 50/60 Hz, 2A
Connectivity	Gigabit Ethernet
Printer Type	TIJ & Laser
Max No. of Heads	Upto 2 Heads

PLC

Power Supply	24 VDC (DC/DC/DC versions)
Connectivity	Gigabit Ethernet
Memory	Up to 24 KB
Protection	Industrial-grade
Digital Inputs	14 DI CPU-Integrated
Digital Outputs	10 DO CPU-Integrated

Inspection

Algorithms	OCR Max, IDMax, 2DMax, Stacked Symbologies
Connectivity	Gigabit Ethernet
Power Supply	24 VDC ±10%, approx 3–5 W
Touchscreen	Yes

System

Processor	Intel i5
OS	Windows IoT
SSD / RAM	500 / 16 GB
